60宽幅白墨烫画机惊艳面世！
发布时间：2023-07-12
访问量：
全新升级配置
高品质高性能

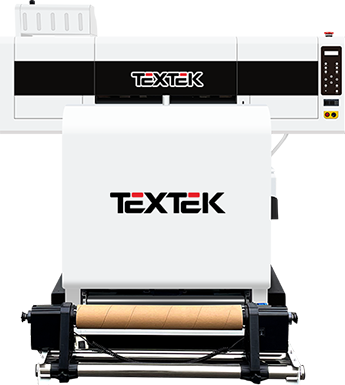

TEXTEK A60 白墨烫画打印机
惊艳面世！
60cm宽幅打印机
适用于多种面料的个性化烫画定制
以及批量性自动化生产
助您有效提升生产效率！
New upgrade configuration
High quality and high performance
TEXTEK DTF A60 Printer
Stunning appearance!
60cm wide format printer
Personalized DIY customization for a variety of fabrics
and batch automated production
Help you effectively improve production efficiency!

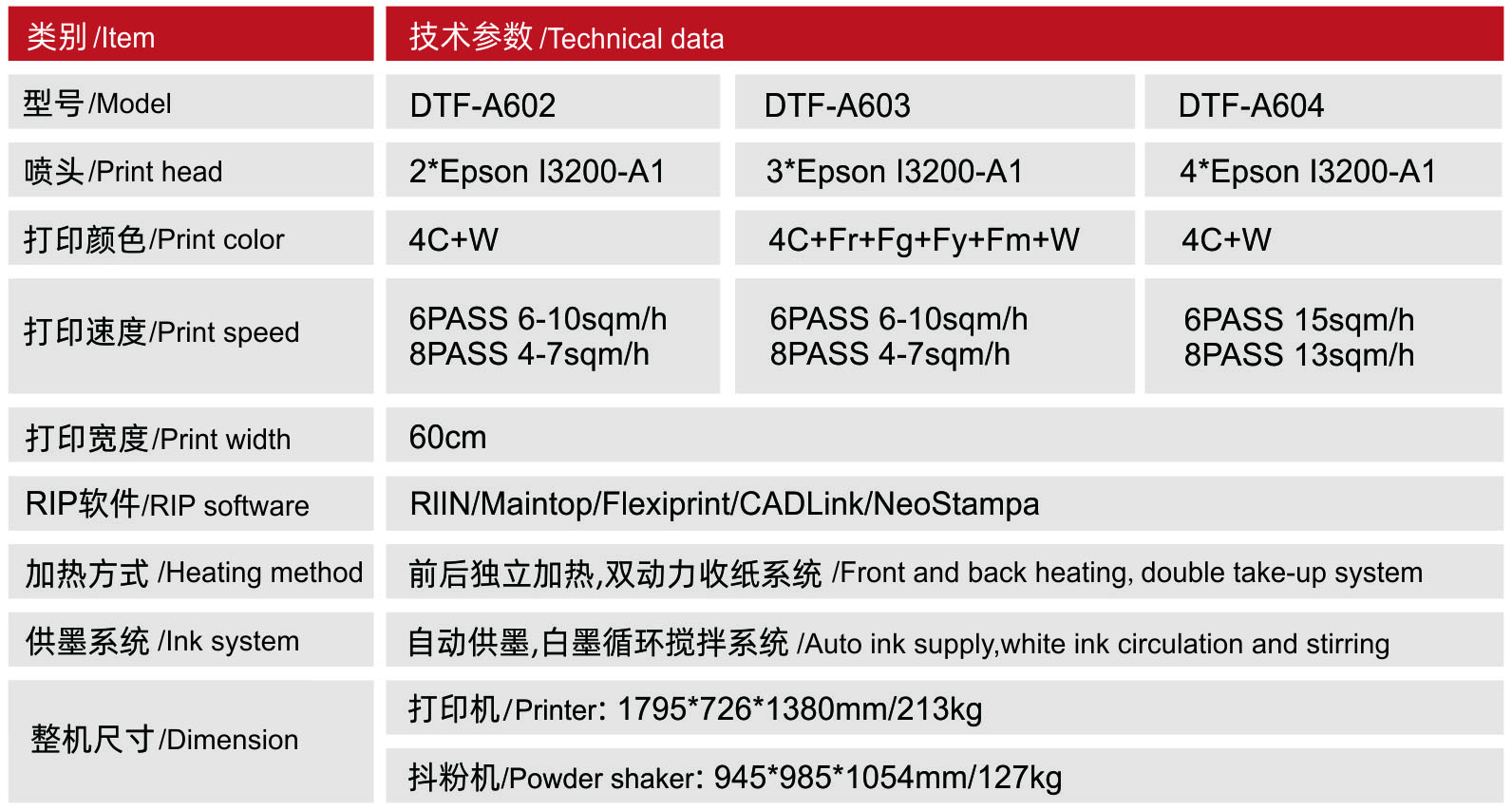

产品参数◀
![~UL%(45AM42C)A]`1R4LXZQ.jpg](https://bexp.135editor.com/files/users/257/2573684/202306/s9QkHRfN_WVS4.jpg?auth_key=1689523199-0-0-2bc201c0d6406400a4ec43fdce88240f)
强悍配置◀
ALL MEMS（微机电系统）制造工艺、薄膜压电原件的采用令高精密喷孔排列（600npi/2排）得以实现，使打印头结构紧凑、速度快、质量好
1060 亿次压电耐久后正常使用。高精密加工技术，耐久性出色
高分辨率，色彩过渡平滑，饱和度高，画质细腻

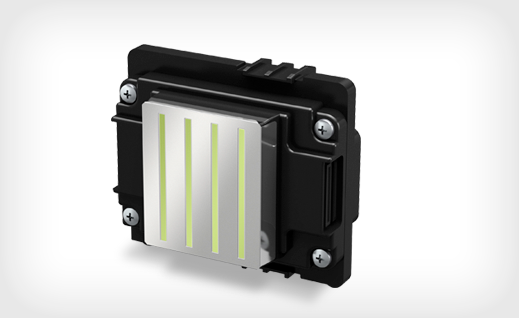

ESPON I3200 original print head
ALL MEMS (Micro-Electro-Mechanical Systems) manufacturing process and the use of thin-film piezoelectric elements enable high-precision nozzle arrangement (600npi/2 rows) to be realized, making the print head compact in structure, fast in speed and good in quality
High-precision processing technology, excellent durability
High resolution, smooth color transition, high saturation, fine picture quality

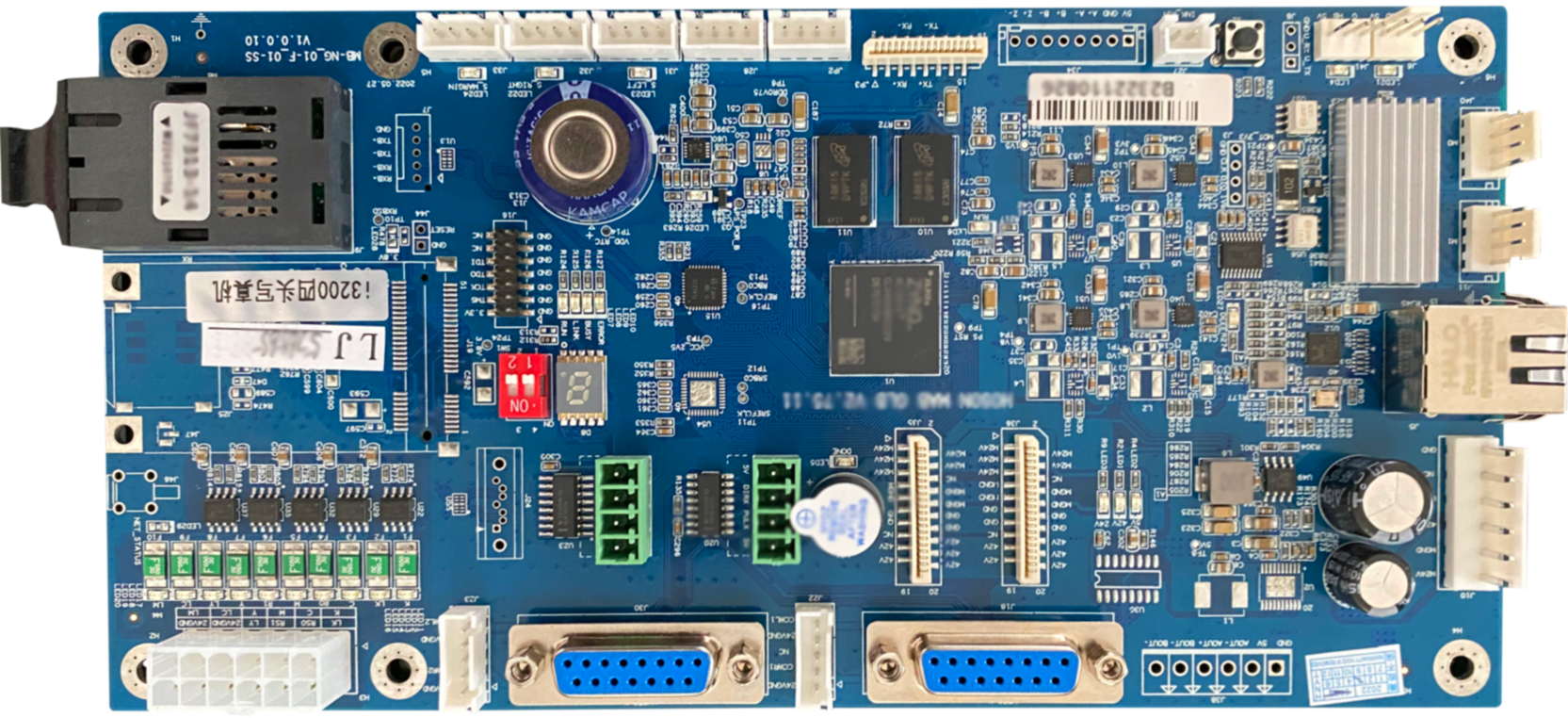

汉森板卡
白墨烫画打印机主流板卡，稳定性及知名度名列前茅
技术水准位于世界前列，功能高度集成，有效保护电路
Hoson board
DTF Printer (Direct to PET film printer) mainstream board, the popularity is among the best
The technical level is at the forefront of the world, the functions are highly integrated, and the circuit can be effectively protected
配套 RIP 软件
搭载锐印/蒙泰/Flexiprint/Cadlink 等制图软件，客户可自行选择直观的工作制作布局界面，轻松实现所见即所得的工作效果
可在线更改数值，随时修改图案细节，直接提高生产员工的工作效率
Supporting RIP software
Equipped with drawing software such as Riin/Maintop/Flexiprint/Cadlink, customers can choose the intuitive work layout interface to easily realize the work effect of what you see is what you get
It can be changed online, and the details of the pattern can be modified at any time, directly improving the work efficiency of production staff
特色功能◀

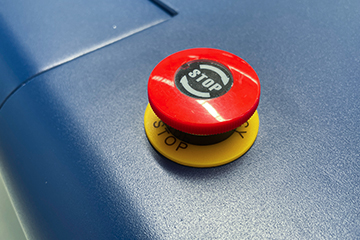

1.安全急停开关
遇到紧急情况，用户一键即可及时停止打印机工作。
▶ Safety emergency stop switch
In an emergency, the user can stop the printer in time with one click

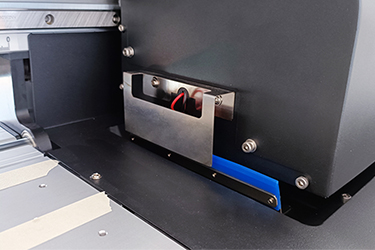

2.防撞系统
产品配有防撞装置，在遇到障碍物时可保护打印头，使其免受损坏。
▶ Anti-collision unit system
The product is equipped with an anti-collision unit device, which can protect the print head from being damaged when encountering obstacles

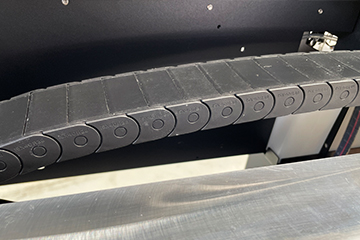

3.半封闭式拖链
保护机器的墨管和扁平线，减少打印过程中的磨损，延长产品使用寿命。
▶ Semi-enclosed ink chain
Protect the ink tube and flat cable of the machine, reduce wear and tear during printing, and prolong the service life of the product

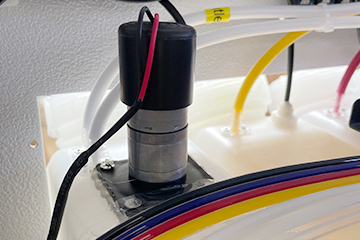

4.白墨搅拌系统
配备白墨搅拌循环系统，防止白墨沉淀导致喷头堵塞，保证印刷工作的顺利进行。
Equipped with a white ink stirring circulation system to prevent the print head from clogging due to white ink precipitation and ensure the smooth progress of printing work

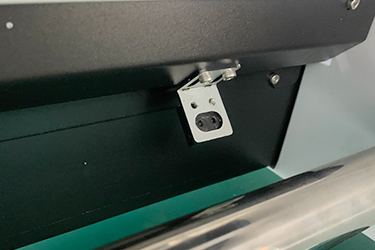

5.缺纸警报
缺纸时自动报警，避免墨水浪费和平台污染。
▶ Lack of film alarm
Automatic alarm when film is out to avoid ink waste and platform pollution

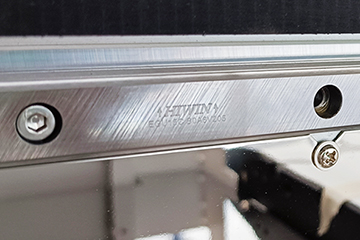

6.高精度导轨&压纸轮
采用中国台湾上银直线导轨，平稳无噪音，配合压纸轮，确保打印图案的精准稳定性。
It adopts HIWIN linear guide rail, which is stable and noiseless, and cooperates with the pinch roller to ensure the accuracy and stability of the printed pattern

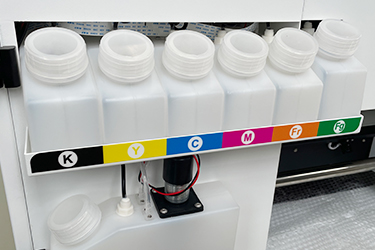

7.CMYKW持续供墨系统
（图为TEXTEK-A60白墨烫画机6502系列墨盒）
(The picture shows 6502 series bulk ink tank of TEXTEK-A60 dtf printer)
缺墨自动警报，双头机器支持CMYK+W打印，3头机器支持9色CMYK+Fr+Fg+ Fy+Fm+W打印，大容量墨盒减少加墨频次。
Lack of ink automatic alarm, double-head machine supports CMYK+W printing, 3-head machine supports 9-color CMYK+Fr+Fg+Fy+Fm+W printing, large-capacity bulk ink tank reduce the frequency of refilling ink

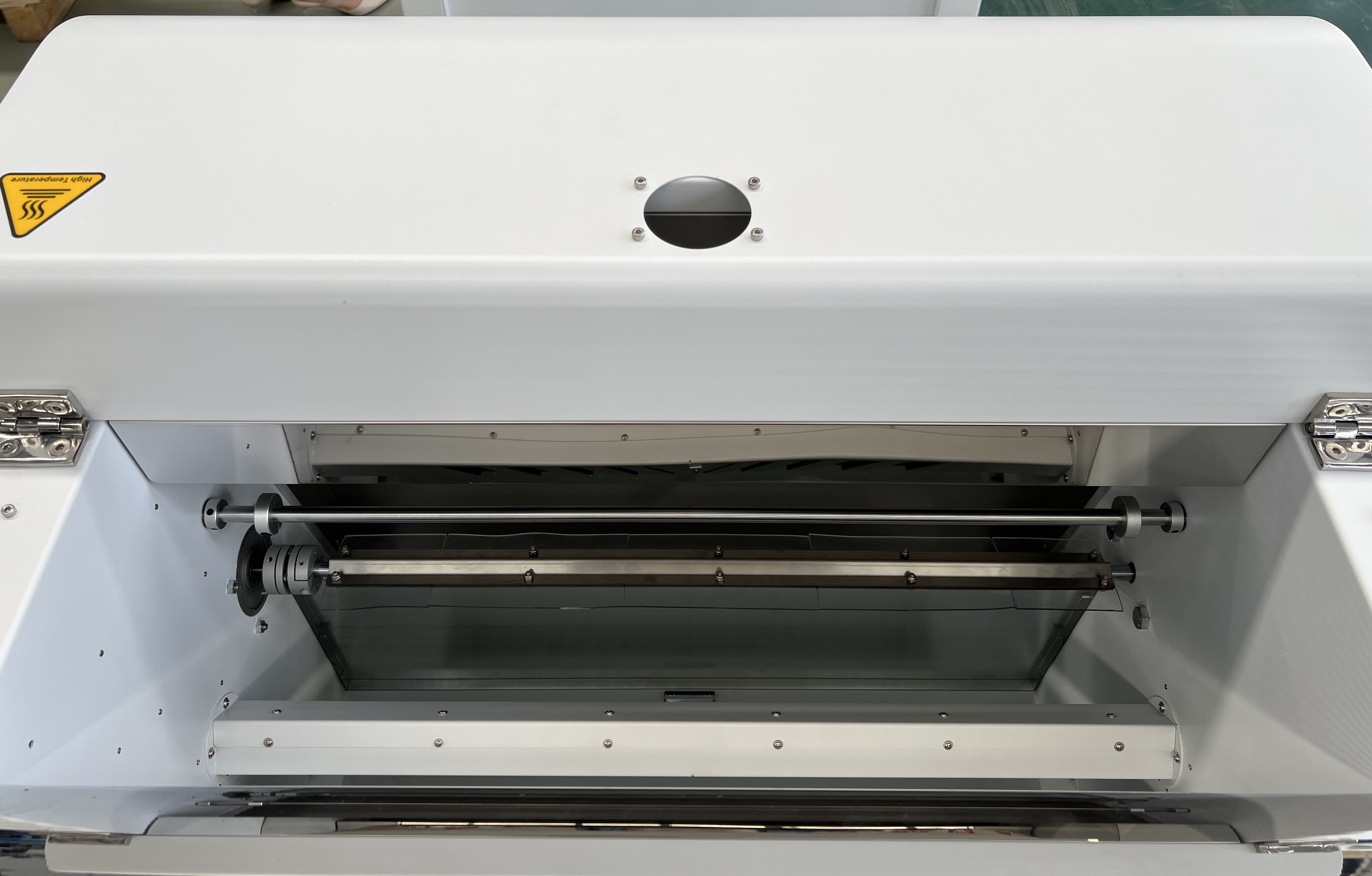

8.两组纠偏轴
双重纠偏系统，避免打印膜走偏，保证高精度打印。
The double deviation correction system avoids deviation of the printing film and ensures high-precision printing
9.前后独立加热
分段式前后加热系统让墨水吸收率更高，保证高品质打印效果。
The segmented front and rear heating system makes the ink absorption rate higher and ensures high-quality printing results
给你一台高效省心的机器！
